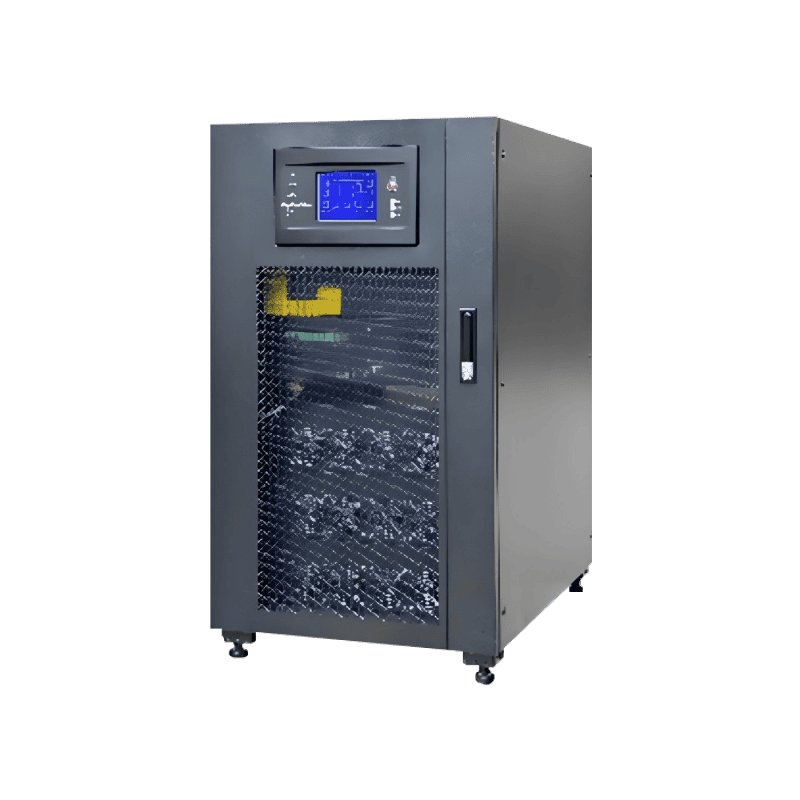

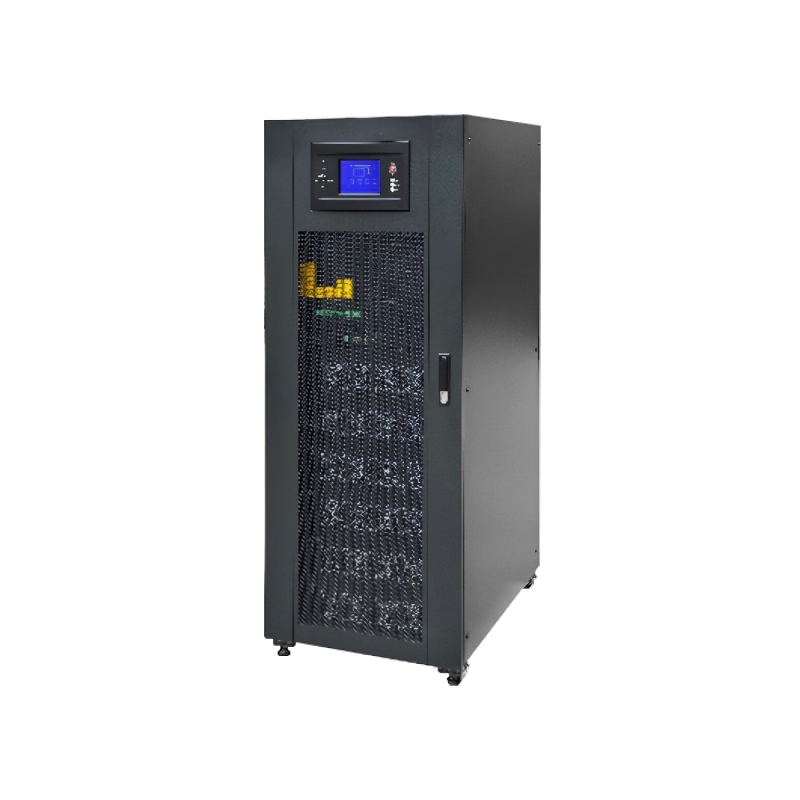

SHUYI SY-M Series 20-200kVA Modular Online UPS
SHUYI SY-M Series 20-200kVA Modular Online UPS
SHUYI SY-M Series 20-200kVA Modular Online UPS
SHUYI SY-M Series 20-200kVA Modular Online UPS
SHUYI SY-M Series 20-200kVA Modular Online UPS
SHUYI SY-M Series 20-200kVA Modular Online UPS

SHUYI SY-M Series 20-200kVA Modular Online UPS

The SHUYI SY-M Series 20-200kVA Modular Online UPS is a high-performance uninterruptible power supply product developed by Hefei Shuyi Digital Power Co., Ltd. It covers a power range of 20-200kVA and adopts a three-in, three-out, dual-conversion online operation mode. With excellent performance and flexible design, it is widely used in key industries such as government, finance, communications, education, transportation, climate, broadcasting and television, industry, taxation, healthcare, energy and electricity, providing stable and reliable power protection for various important equipment and systems





System Capacity

Connection

60KVA-200KVA

Three-phase five-wire system

Rated Voltage

Rated Frequency

380/400/415VAC

50/60HZ

Input power factor

 Battery Cells

>0.99

40 batteries(32-44 optional)
Pregunte ahora
CATEGORÍAS DE PRODUCTO
¿Cómo podemos ayudarte?
Puede contactarnos de cualquier forma que le resulte conveniente. Estamos disponibles las 24 horas, los 7 días de la semana, por correo electrónico o por teléfono.
CONTÁCTENOS
nuevos productos



Features
  • Modular UPS

    Modular System

    The whole system is a modular structure, composed of 1 to 10 modules, the maximum single power module is 20KW.

    Dual DSP controller of power module, power module independent control, no single point of failure risk.



    Capacity Flexible Configuration

    The parallel circulation of the whole system is small, which can realize 4 parallel online expansion.

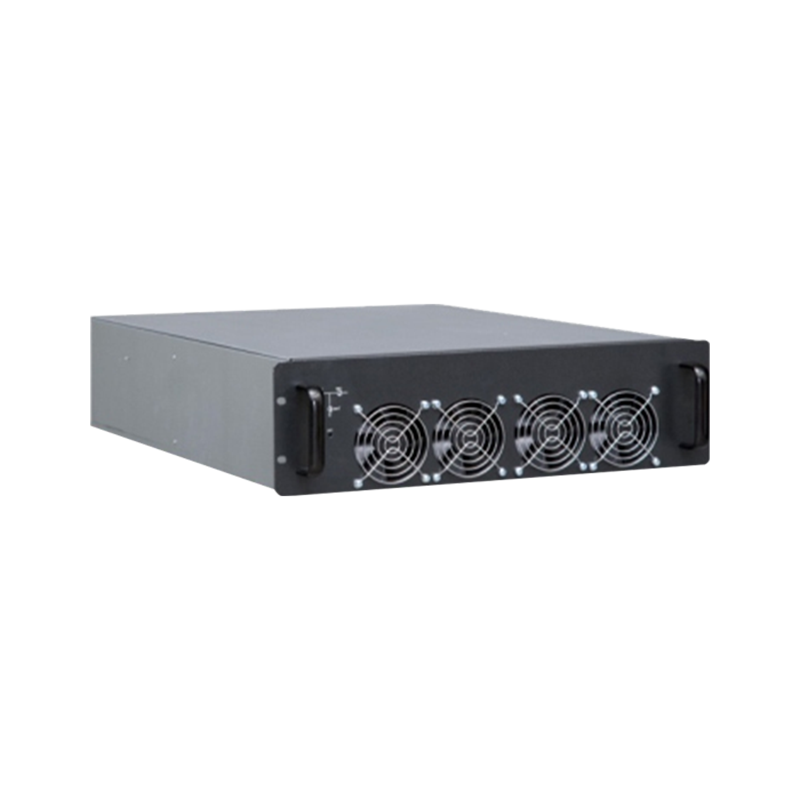

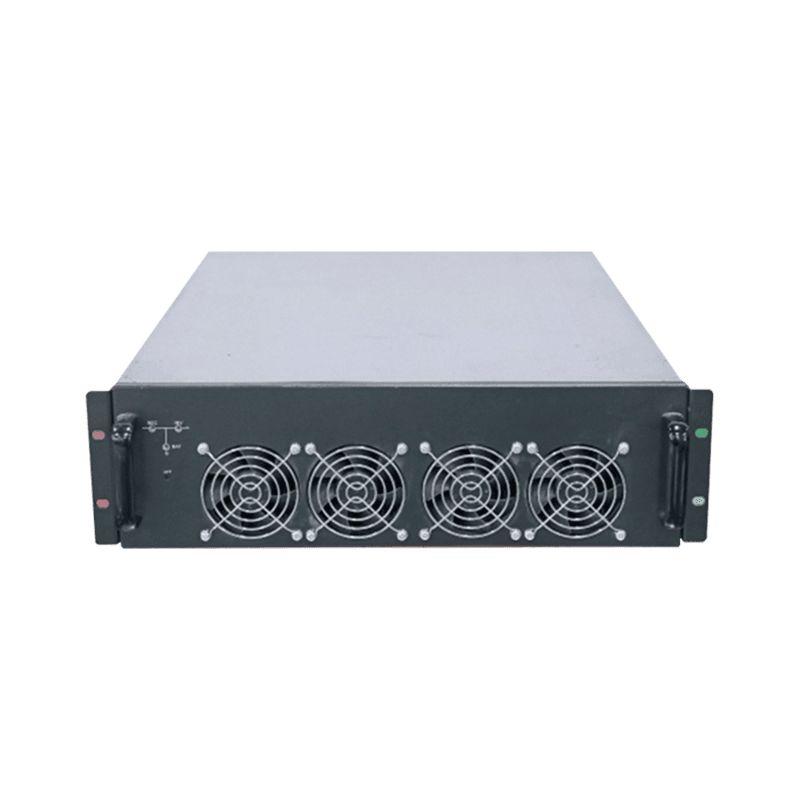

    The UPS power module supports hot swapping, which makes capacity expansion and upgrade extremely simple.

  • SHUYI Modular UPS

    Efficient & Saving

    Green energy saving and environmental protection design, output power factor = 1, input harmonic current < 3%, the overall efficiency rate>96%.

    Intelligent battery management, automatic battery maintenance, prolong service life.



    Safety and Stability

    The core control adopts advanced DSP and all-digital technology, and the system stability is higher.

    Super output overload and short-circuit capability to ensure system stability and system safety under extreme conditions.

Advantages



  • SHUYI Modular UPS

    • All the positive maintenance, modular UPS support way up and down into the line, convenient user terminal.

    • System cabinet internal integrated distribution system, installation is convenient and save the user’s investment.

    • Support parallel sharing function of battery pack.

    • Super grid adaptability and load adaptability and strong load capacity.

    • UPS system modular design, N + X redundancy, high redundant reliability, long MTBF.





Specifications



Model SYM060/20 SYM120/20 SYM200/20
Basic Parameters
Model SYM060/20 SYM120/20 SYM200/20
Capacity 60kVA 120kVA 200kVA

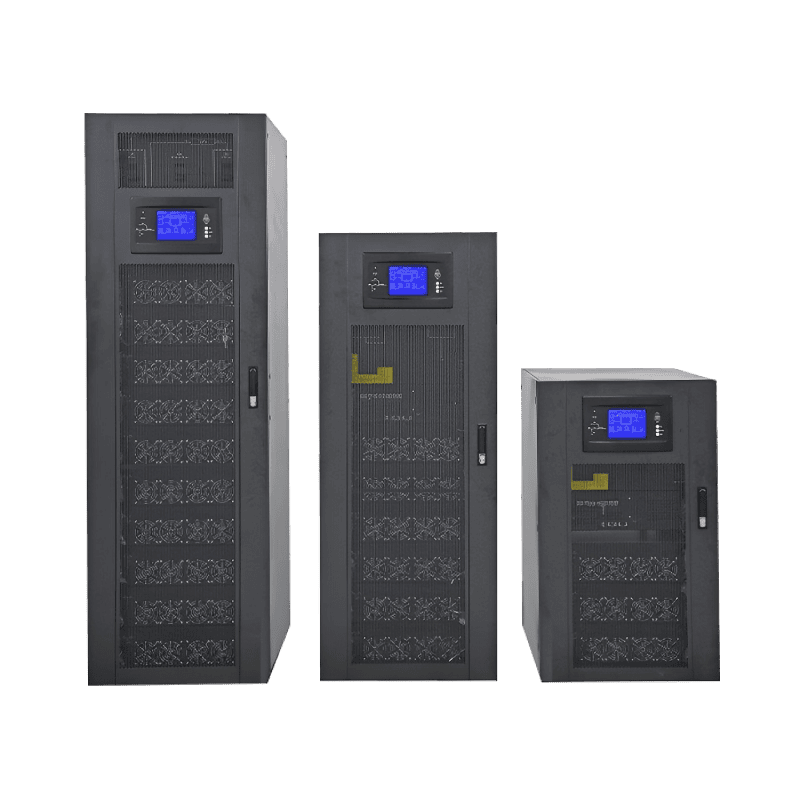

Cabinet Type 3-module cabinet 6-module cabinet 10-module cabinet
Input (MAIN INPUT)
Input Wiring 3-p+ N + PE
Input Voltage (Line Voltage) 380/400/415VAC
Input Frequency 50/60Hz
Power Factor >0.99
Current Distortion Rate (100% linear load) THDi<3%
Voltage Range (Line Voltage) 304~485VAC (full load); 304~138VAC (load 100% to 40% linear derating)
Frequency Range 40-70Hz
BATTERY
Battery Voltage ±240VDC (30~50 cells)
Charging Voltage Accuracy ±1%
BYPASS
Bypass Voltage (Line Voltage) 380/400/415VAC
Voltage Range -20%~+15%
Bypass Frequency Range (Rated Frequency) 50/60Hz ±1, ±3, ±5Hz
OUTPUT
Rated Output Voltage (Line Voltage) 380/400/415VAC
Rated Frequency 50/60Hz
Output Power Factor 0.9
Voltage Accuracy ±1.0%
Output Dynamic Response <5% (20%-80%-20% step load); <20ms (0%-100%-0% step load)
Dynamic Recovery Time <1% (linear load); <5.5% (nonlinear load)
Inverter Overload 110%: switch to bypass after 1h; 125%: switch to bypass after 10min; 150%: switch to bypass after 1min/200ms
Frequency Accuracy 0.1%
Tracking Range Adjustable ±0.5~±5Hz, default ±3Hz
Tracking Rate Adjustable 0.5~3Hz/S, default 0.5Hz/S
Peak Ratio 3:1
Three-phase Phase Accuracy 120°±0.5°






Applications

• Data centers, computer rooms

• ISP server, telecommunications

• Finance, securities, transportation

• Taxation, medical systems
