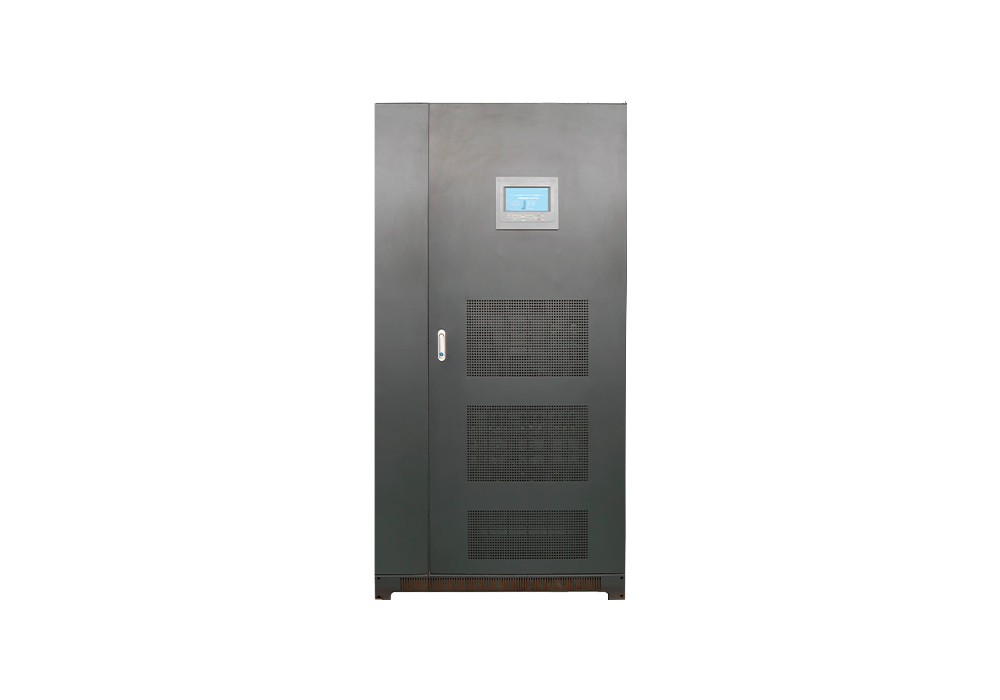

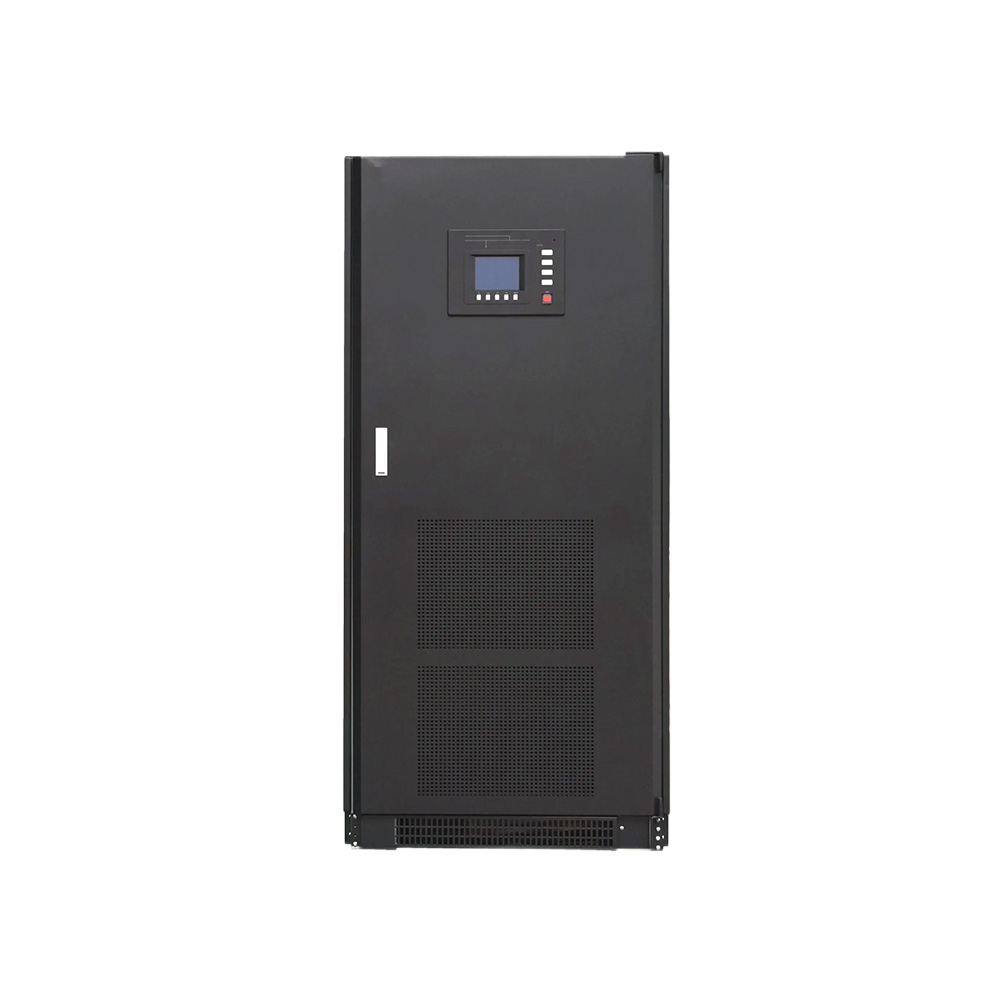

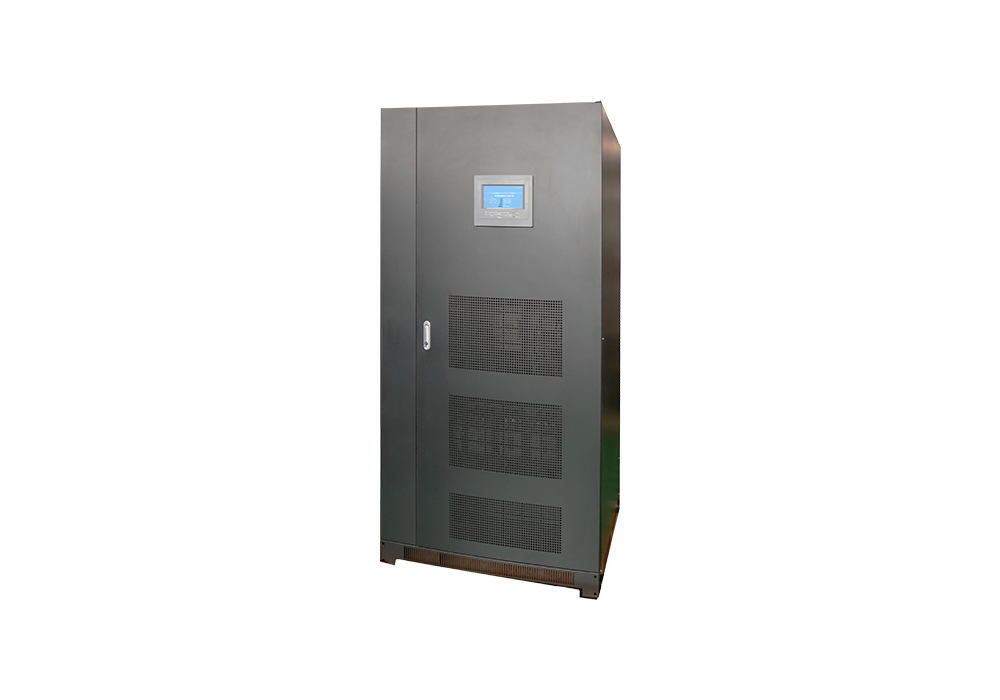

SY-G Series 160-600KVA Industrial-Frequency UPS

The SY-G Series 160-600KVA Industrial-Frequency UPS is a high-performance industrial online UPS with 160-600kVA capacity. It fits Data Center, Telecommunication Center, financial institutions, stadiums and semiconductor production lines, featuring online double conversion and output isolated transformer. Its advanced rectifier and IGBT tech ensure input THDI≤4% and input PF≥0.99 for energy saving, plus wide input voltage range and generator compatibility.

This industrial online UPS delivers up to 94% AC-AC efficiency (98% in ECO Mode) and output PF 0.9. It offers 100% 3-phase unbalance tolerance, comprehensive protection, 8-unit parallel redundancy, LCD display and intelligent battery management. With 0ms static bypass transfer time and front maintenance, it safeguards critical equipment stably.

Capacity Range	160-600kVA (144-540kW)
Input Voltage	380/400/415Vac+N+W (3 phase + PE), 298-498Vac Range
Output Voltage	Line Voltage: 380×(1±1%)AC; Phase Voltage: 220×(1±1%)AC
PF	Input PF≥0.99 (standard)/0.95 (with filter); Output PF 0.9 (No lag)
Input Wiring	3 phase + Neutral + Ground (380/400/415Vac+N+W)
Efficiency	Up to 94% (AC-AC, with accessories); Up to 98% in ECO Mode

CATEGORÍAS DE PRODUCTO

¿Cómo podemos ayudarte?

Puede contactarnos de cualquier forma que le resulte conveniente. Estamos disponibles las 24 horas, los 7 días de la semana, por correo electrónico o por teléfono.

CONTÁCTENOS

nuevos productos

Features

Advanced Power Conversion & High Energy Efficiency

Adopts advanced rectifier and IGBT technology; input PF ≥0.99 (with optional filter) and THDI ≤4%, minimizing grid power loss and optimizing energy utilization.

Overall AC-AC efficiency up to 94% (with optional accessories), ECO mode efficiency up to 98%, significantly reducing long-term operation energy costs.

Ultra-Wide Adaptability & Strong Compatibility

Input voltage range of 298-498Vac, input frequency range of 50/60Hz±10%, adapting to unstable grid conditions; fully compatible with generator input for off-grid scenarios.

IP20 cabinet standard + intelligent speed-control cooling fan, suitable for harsh industrial environments; elevation ≤1500m without derating, expanding application scope.

Superior Output Stability & Strong Load Capacity

Pure sine wave output with THD <1% (linear full load)、<3% (non-linear full load); 0.9 output PF (no lag), supporting heavy-duty loads like data centers and industrial production lines.

Allows 100% 3-phase unbalance; voltage dynamic response ≤±5% (0-100% sudden load change) with response time <5ms, ensuring stable power for sensitive equipment.

Comprehensive Protection & Intelligent Management

105% load long-term operation, 110% for 1h, 125% for 10min, 150% for 1min; multiple protections (overtemp, over/under voltage, short-circuit) for system safety.

Multi-language LCD display + LED indicators; supports RS232/SNMP/485 (optional) for remote monitoring; up to 8 units parallel redundancy, enhancing system reliability.

Advantages

🏭

Heavy-Duty Load Adaptability

160-600KVA large capacity covers data centers, industrial lines; 0.9 output PF + strong overload capacity, fitting high-power equipment needs.

💡

Extreme Energy Efficiency & Cost Saving

94% AC-AC efficiency + 98% ECO mode efficiency; low input THDI reduces grid penalty fees, cutting annual energy costs by 10-18%.

🔒

High Reliability & Redundancy

Up to 8 units parallel redundancy; 0ms static bypass transfer, 2ms bypass-inverter transfer; no power interruption for critical loads.

🔧

Smart Maintenance & Env Adaptation

Auto-mute + intelligent cooling fan; multi-language LCD + remote monitoring; -15~50℃ storage temp, fitting diverse industrial environments.

Parameters

Parameter Item	SYG1600L33-N	SYG2000L33-N	SYG2500L33-N	SYG4000L33-N	SYG5000L33-N	SYG6000L33-N
Capacity (VA/W)	160KVA/144KW	200KVA/180KW	250KVA/225KW	400KVA/360KW	500KVA/450KW	600KVA/540KW
UPS Structure	Online Double Conversion
Appearance	Low Frequency with Output Isolated Transformer
Overall Efficiency (AC-AC)	94% (with optional accessories)
ECO Mode Efficiency	98%
Noise (In 2 Meters)	67dB
Working Temperature	0~40℃
Input Voltage	380/400/415Vac+N+W (3 phase + PE)
Input Voltage Range	298~498Vac
Output Voltage	Line Voltage: 380×(1±1%)AC; Phase Voltage: 220×(1±1%)AC
Output Power Factor	0.9 (no lag)
3 Phase Unbalanced Tolerance	Allow 100% 3 Phase Unbalanced
Static Bypass Transfer Time	0ms
Bypass → Inverter Transfer Time	2ms
Battery Type	Sealed Lead Acid Maintenance Free
Parallel Redundancy	Up to 8 units
