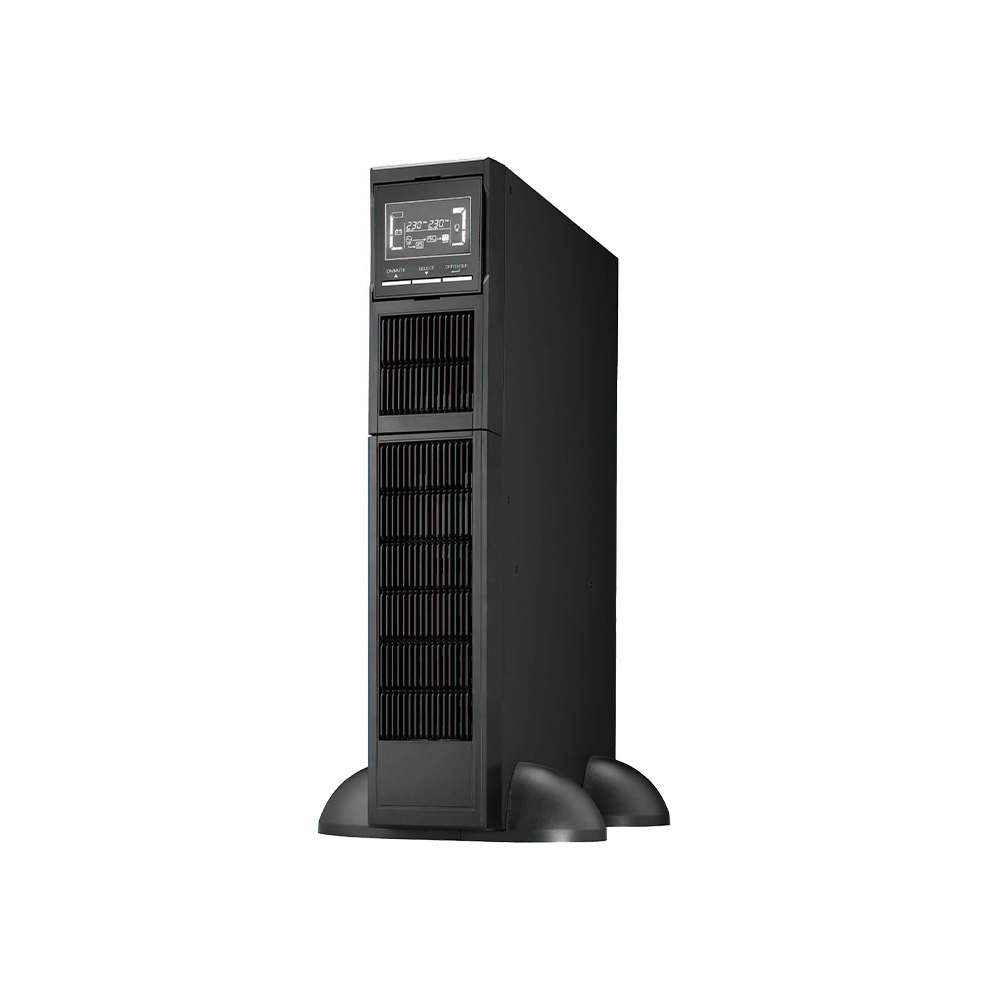

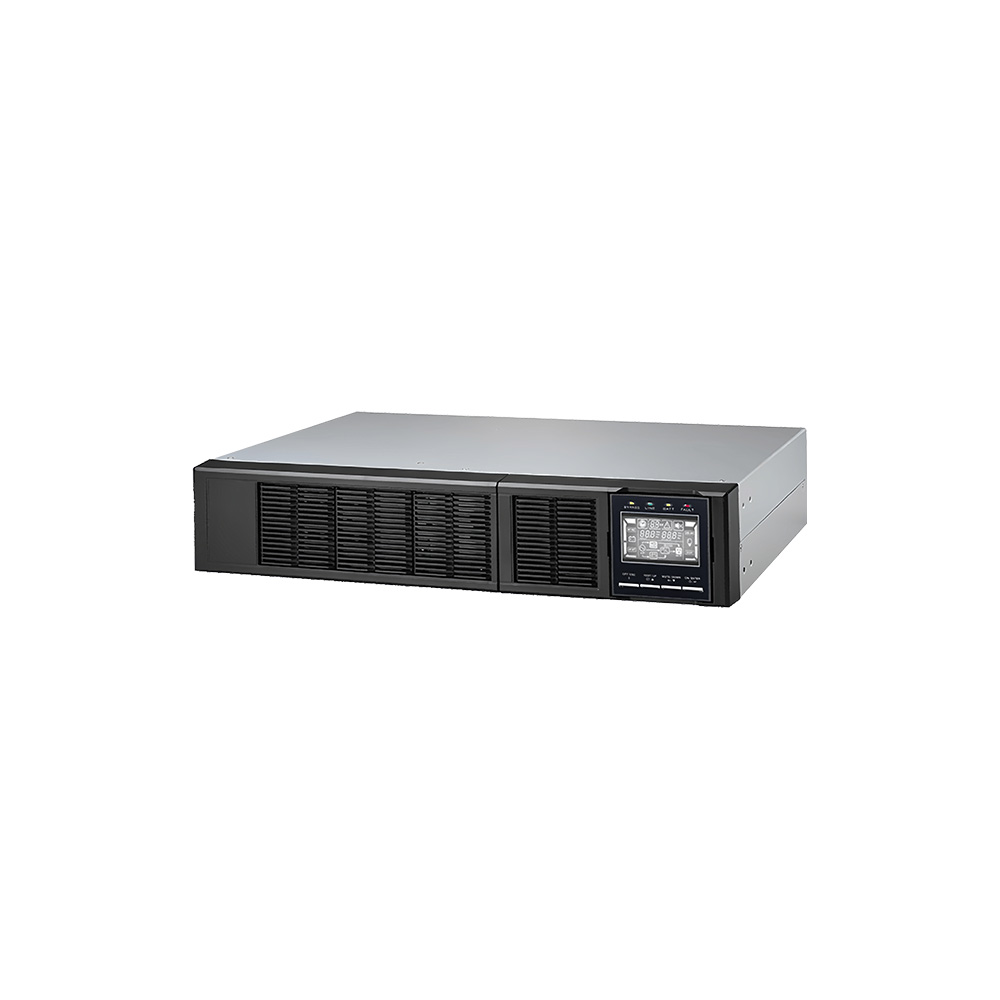

SY-RT Series Rack & Tower Online UPS 6-10KVA

The SY-RT Series 6KVA/10KVA Rack/Tower Online UPS is a versatile online UPS with 6-10kVA capacity. It fits government, finance, communication, healthcare, education and more, featuring true double-conversion, DSP tech and wide 110-300VAC input range. Active PFC (0.99) and 50/60Hz conversion ensure stable, efficient power supply.

This online UPS delivers output PF 1, 98.5% ECO Mode efficiency (94% AC Mode) and zero transfer time. It supports generator compatibility, adjustable batteries, SNMP/USB/RS-232 communication, and optional N+X parallel redundancy, with EPO for safety and reliable critical equipment protection.

Capacity Range	6kVA/6000W, 10kVA/10000W (1 phase in/out)
Input Voltage	Nominal: 208/220/230/240VAC; Range: 110-300VAC (±3%)
Output Voltage	208*/220/230/240VAC, Regulation: ±1% (pure sinewave)
PF	Input PF ≧0.99 (full load); Output PF 1 (derated to 0.8-0.9 under specific battery config)
Input Wiring	1 phase in / 1 phase out (with neutral & ground)
Efficiency	AC Mode: 94%; ECO Mode: 98.5%; Battery Mode: 92%

CATEGORÍAS DE PRODUCTO

¿Cómo podemos ayudarte?

Puede contactarnos de cualquier forma que le resulte conveniente. Estamos disponibles las 24 horas, los 7 días de la semana, por correo electrónico o por teléfono.

CONTÁCTENOS

nuevos productos

Features

True Double-Conversion & DSP Precision Control

Adopts true online double-conversion technology and DSP chip, ensuring stable power output for critical loads; output power factor 1.0 for efficient load matching.

Active input PFC (≥0.99 @ full load) optimizes grid power usage, with THDi <4% to reduce grid pollution and adapt to generator input.

Wide Adaptability & Intelligent Energy-Saving

Ultra-wide input voltage range (110-300VAC) adapts to unstable grid; 50Hz/60Hz frequency converter mode supports global power standards.

ECO mode with up to 98.5% efficiency reduces energy loss; pure sine wave output (THD ≤1% for linear load) protects sensitive equipment.

Seamless Switching & Reliable Protection

0ms transfer time between AC mode and battery mode, 0ms inverter to bypass switching, ensuring no load power interruption.

Multi-level overload protection (100%-130% load) with graded response time; emergency power off (EPO) function enhances operational safety.

Flexible Battery & Smart Monitoring

Adjustable battery numbers (16-20 pcs) for standard/long-run models; 90% charge recovery in 9 hours, 4.0A max charging current for long-run versions.

Standard RS-232/USB & optional SNMP interfaces, supporting multi-system monitoring; LCD panel displays full status (load, battery, voltage, faults).

Advantages

🔌

High Adaptability & Redundancy

6kVA/10kVA capacity covers medium loads; optional N+X parallel redundancy enhances reliability; compatible with global power standards.

⚡

Ultra-High Energy Efficiency

ECO mode efficiency up to 98.5%, AC mode up to 94%; low energy loss cuts long-term operation costs for medium-to-large loads.

📦

Flexible Deployment & Maintenance

2U rack/tower convertible design saves space; adjustable battery configuration meets diverse backup needs; LCD simplifies status checks.

🛡️

Low Noise & Safe Operation

Noise ≤58dB @1m (max) for quiet environments; multi-level protection + EPO function ensures safe operation for critical equipment.

Parameters

Models	SYRT6kVA	SYRT10kVA
Capacity (VA/W)	6000VA/6000W	10000VA/10000W
Input Nominal Voltage	208/220/230/240 VAC
Input Voltage Range	110~300VAC ± 3% (50% load); 176~300VAC ± 3% (100% load)
Input Frequency Range	46~54 Hz (50Hz); 56~64 Hz (60Hz)
Input Power Factor	≧ 0.99 @ full load
Input THDi	< 4% @100% Load; < 6% @50% Load
Output Voltage	208*/220/230/240 VAC
AC Voltage Regulation	± 1%
Output THD	≦1% (Linear Load); ≦4% (Non-linear Load)
Transfer Time (AC to Battery)	Zero
Transfer Time (Inverter to Bypass)	Zero
ECO Mode Efficiency	98.5%
AC Mode Efficiency	94%
Battery Mode Efficiency	92%
Standard Model Battery Recharge Time	9 hours (recover to 90% capacity)
